Ford EV Charger Options
Mobile Power Cord
The Mobile Power Cord provides level 1 and level 2 charging capability at home.
DETAILS:
Designed specifically for your Ford electric vehicle and works with all J1772 plugs (EV industry standard).
Level 1:
• Common household outlet
• Voltage: 120 V
• Recommended circuit amperage: 15 A
• Charger amperage: 12 A
• Estimated kilometres of range per hour of charging: 5 (Mustang Mach-E NCM battery), 10 (Mustang Mach-E LFP battery)
Level 2:
• Hardwired or NEMA 14-50 outlet (licensed electrician)
• Voltage: 240 V
• Recommended circuit amperage: 50 A
• Charger amperage: 32 A
• Estimated kilometres of range per hour of charging: 32 (Mustang Mach-E NCM battery), 34 (Mustang Mach-E LFP battery)
Lightweight cable length is 6 m.
Backed by Ford Motor Company three-year limited warranty.

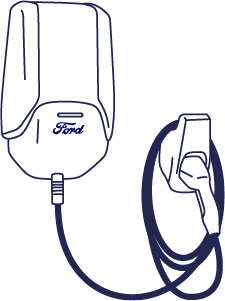

Ford Connected Charge Station
Designed to be installed wherever you park your Ford EV, the weatherproof 40-amp Connected Charge Station can charge any current or future electric vehicle in the Ford lineup.
DETAILS:
Designed specifically for your Ford electric vehicle and works with all J1772 plugs (EV industry standard).
Level 2:
• Hardwired installation (licensed electrician; Ford recommends Qmerit for installation)
• Voltage: 240 V
• Recommended circuit amperage: 60 A
• Charger amperage: 48 A (can be de-rated to a lower amperage setting)
• Estimated kilometres of range per hour of charging:
– 45 (Mustang Mach-E NCM battery), 53 (Mustang Mach-E LFP battery)
– 32 (F-150 Lightning Standard Range/Extended Range)
Cable length is 6 m.
Backed by Ford Motor Company three-year limited warranty.
Ford Charge Station Pro
The Ford Charge Station Pro provides the highest possible level 2 AC charging capability at home. The Ford Charge Station Pro provides up to 80 amps to maximize your home charging speed for your Ford electric vehicle.
DETAILS:
Designed specifically for your Ford electric vehicle.
Level 2:
• Hardwired installation (licensed electrician; Ford recommends Qmerit for installation)
• Voltage: 240 V
• Recommended Circuit amperage: 100 A
• Charger amperage: 80 A (can be de-rated to a lower amperage setting)
• Estimated kilometres of range per hour of charging:
– 32 (F-150 Lightning Standard Range with 11.3 kW onboard charger)
– 48 (F-150 Lightning Extended Range with 19.2 kW onboard charger)
Cable length is 7.6 m.
When paired with F-150 Lightning (and future vehicles) and the available Home Integration system, the FCSP is capable of delivering intelligent backup power and future additional capabilities.
Backed by Ford Motor Company three-year limited warranty.
